Trailer Jacks

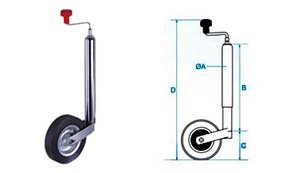

Jockey Wheel Parking Jack
CODE A Pipe Diameter Wheel Size Pipe Length B C D
KAPJWPJ01 35 160x43 220 310 100 465
KAPJWPJ02 42 200x50 195 390 120 590
KAPJWPJ03 48 200x50 195 390 120 590
KAPJWPJ04 48 250x85 175 420 150 625
KAPJWPJ05 60 255x80 400 430 150 720
KAPJWPJ06 60 220x70 500 560 350 1060

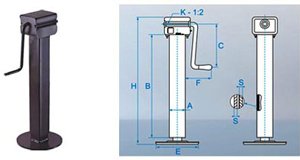

Parking Jack Heavy Type With Reduction Gear And Lateral Handle
CODE Dim. A Dim. B Dim. C E F H S STROKE Static Cap.
KAPPJ001HWG 70 500 220 220 185 620 3 400 3000
KAPPJ002HWG 70 600 220 220 185 720 3 500 3000
KAPPJ003HWG 70 700 220 220 185 820 3 500 3000
KAPPJ004HWG 70 800 220 220 185 920 3 500 3000
KAPPJ005HWG 80 500 220 220 180 620 3 400 3000
KAPPJ006HWG 80 600 220 220 180 720 3 500 3000
KAPPJ007HWG 80 800 220 220 180 920 3 500 3000

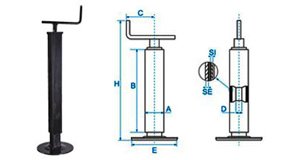

Parking Jack "Light Type"
CODE Dim. A Dim. B Dim. C E H SE SI D STROKE STATIS CAP.
KAPPJ001L 40 360 115 95 500 2 2 18 250 400
KAPPJ002L 60 660 115 160 840 3 2 18 450 700
KAPPJ003L 50 460 115 160 610 3 2 18 250 600
KAPPJ004L 50 560 115 160 710 3 2 18 350 600
KAPPJ005L 60 460 115 160 610 3 2 18 350 700
KAPPJ006L 60 560 115 160 710 3 2 18 450 700
KAPPJ007L 70 460 180 160 640 3 3 22 350 1200
KAPPJ008L 70 660 180 160 840 3 3 22 500 1200
KAPPJ009L 70 660 180 160 840 3 3 22 500 1200

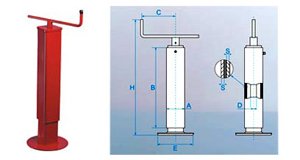

Parking Jacks Heavy Type
CODE Dim. A Dim. B Dim. C E H S D Stroke Static Cap.
KAPPJ001H 40 300 115 95 440 2 18 150 400
KAPPJ002H 40 400 115 95 540 2 18 250 400
KAPPJ003H 40 500 115 95 640 2 18 350 400
KAPPJ004H 50 300 135 160 480 3 22 150 800
KAPPJ005H 50 400 135 160 580 3 22 250 800
KAPPJ006H 50 500 135 160 680 3 22 350 800
KAPPJ007H 50 600 135 160 780 3 22 500 800
KAPPJ008H 50 400 135 160 580 3 22 250 800
KAPPJ009H 60 400 135 160 580 3 22 250 1000
KAPPJ010H 60 500 135 160 680 3 22 350 1000
KAPPJ011H 60 600 135 160 780 3 22 500 1000
KAPPJ012H 60 700 135 160 880 3 22 500 1000
KAPPJ013H 60 500 135 160 680 3 22 350 1000
KAPPJ014H 70 400 180 160 580 3 28 300 1800
KAPPJ015H 70 500 180 160 680 3 28 400 1800
KAPPJ016H 70 600 180 160 780 3 28 500 1800
KAPPJ017H 70 700 180 160 880 3 28 500 1800
KAPPJ018H 80 400 180 220 590 3 28 300 2000
KAPPJ019H 80 500 180 220 690 3 28 400 2000
KAPPJ020H 80 600 180 220 790 3 28 500 2000
KAPPJ021H 100 500 180 220 690 4 28 400 2200
KAPPJ022H 100 700 180 220 890 4 28 500 2200

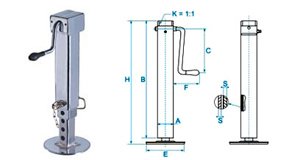

Parking Jack With Lateral Handle
CODE Dim. A Dim. B Dim. C E F H S STROKE Static Cap.
KAPPJ01WH 60 550 170 160 150 565 3 350 1000
KAPPJ02WH 80 550 170 160 150 580 3 350 1000

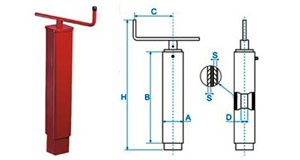

Parking Jack Heavy Type Without Footplate
CODE Dim. A Dim. B Dim. C H S D Stroke Static Cap.
KAPPJWOFP01 40 400 115 535 2 18 250 400
KAPPJWOFP02 50 400 135 565 4 22 250 800
KAPPJWOFP03 60 400 135 1256 4 22 250 1000
KAPPJWOFP04 70 500 180 665 4 28 400 1800
KAPPJWOFP05 80 500 180 665 4 28 400 2000
