Top Link Pins

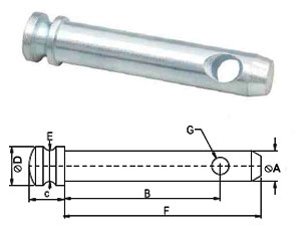

TOP LINK PIN
CODE A B C D E F G
KAPTLP12040 12 40 15 15 11 55 6.3
KAPTLP12080 12 80 15 15 11 95 6.3
KAPTLP14040 14 40 15 17 12 55 8.3
KAPTLP14082 14 82 15 17 12 97 8.3
KAPTLP16040 16 40 15 20 13 55 8.3
KAPTLP16045 16 45 15 20 13 60 8.3
KAPTLP16070 16 70 15 20 13 85 8.3
KAPTLP16076 16 76 15 20 13 91 8.3
KAPTLP16082 16 82 15 20 13 97 8.3
KAPTLP16086 16 86 15 20 13 101 8.3
KAPTLP16096 16 96 15 20 13 111 8.3
KAPTLP16096 16 96 15 20 13 111 8.3
KAPTLP16100 16 100 15 20 13 115 8.3
KAPTLP16120 16 120 15 20 13 135 8.3
KAPTLP16125 16 125 15 20 13 140 8.3
KAPTLP16125 16 125 15 20 13 140 8.3
KAPTLP16146 16 146 15 20 13 161 8.3
KAPTLP19046 19 46 17 25 18 61 12
KAPTLP19052 19 52 17 25 18 67 12
KAPTLP19065 19 65 17 25 18 80 12
KAPTLP19070 19 70 17 25 18 85 12
KAPTLP19076 19 76 17 25 18 91 12
KAPTLP19086 19 86 17 25 18 101 12
KAPTLP19092 19 92 17 25 18 107 12
KAPTLP19096 19 96 17 25 18 111 12
KAPTLP19103 19 103 17 25 18 118 12
KAPTLP19106 19 106 17 25 18 121 12
KAPTLP19110 19 110 17 25 18 125 12
KAPTLP19120 19 120 17 25 18 135 12
KAPTLP19125 19 125 17 25 18 140 12
KAPTLP19145 19 145 17 25 18 160 12
KAPTLP19165 19 165 17 25 18 160 12
KAPTLP22055 22 55 17 28 21 70 12
KAPTLP22055 22 55 17 28 21 70 12
KAPTLP22076 22 76 17 28 21 91 12
KAPTLP22085 22 85 17 28 21 100 12
KAPTLP22095 22 95 17 28 21 110 12
KAPTLP22100 22 100 17 28 21 115 12
KAPTLP22106 22 106 17 28 21 121 12
KAPTLP22110 22 110 17 28 21 125 12
KAPTLP22125 22 125 17 28 21 140 12
KAPTLP22145 22 145 17 28 21 160 12
KAPTLP22155 22 155 17 28 21 170 12
KAPTLP22165 22 165 17 28 21 180 12
KAPTLP22185 22 185 17 28 21 200 12
KAPTLP22205 22 205 17 28 21 220 12
KAPTLP25076 25 76 20 31 24 91 12
KAPTLP25085 25 85 20 31 24 100 12
KAPTLP25095 25 95 20 31 24 110 12
KAPTLP25105 25 105 20 31 24 120 12
KAPTLP25110 25 110 20 31 24 125 12
KAPTLP25116 25 116 20 31 24 131 12
KAPTLP25126 25 126 20 31 24 141 12
KAPTLP25136 25 136 20 31 24 151 12
KAPTLP25145 25 145 20 31 24 160 12
KAPTLP25160 25 160 20 31 24 175 12
KAPTLP25180 25 180 20 31 24 195 12
KAPTLP25185 25 185 20 31 24 200 12
KAPTLP25205 25 205 20 31 24 220 12
KAPTLP28085 28 85 20 34 27 100 12
KAPTLP28095 28 95 20 34 27 110 12
KAPTLP28103 28 103 20 34 27 118 12
KAPTLP28116 28 116 20 34 27 131 12
KAPTLP28125 28 125 20 34 27 140 12
KAPTLP28130 28 130 20 34 27 145 12
KAPTLP28145 28 145 20 34 27 160 12
KAPTLP28152 28 152 20 34 27 167 12
KAPTLP28160 28 160 20 34 27 175 12
KAPTLP28180 28 180 20 34 27 195 12
KAPTLP28205 28 205 20 34 27 220 12
KAPTLP30150 30 150 21 36 32 168 12
KAPTLP32105 32 105 20 38 32 152 12
KAPTLP32125 32 125 20 38 32 163 12
KAPTLP32136 32 136 20 38 32 175 12

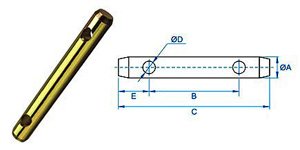

Top Link Pin Without Head
CODE A B C D E
KAPTLPWOH19140 19 96 140 12 22
KAPTLPWOH19170 19 126 170 12 22
KAPTLPWOH19207 19 163 207 12 22
KAPTLPWOH19254 19 210 254 12 22
KAPTLPWOH25164 25 120 164 12 22

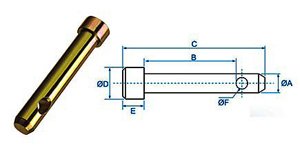

Special Top Link Pin
CODE A B C D E F
KAPSTLP120575 12 57 70 18 4 5
KAPSTLP160815 16 81 98 24 4.5 6.5
KAPSTLP160595 16 59 76 24 7 6.5
KAPSTLP190605 19 60 82 27 7 6.5
KAPSTLP190935 19 93 112 27 6 6.5
KAPSTLP221205 22 120 151 37 15 8.5
KAPSTLP221355 22 135 170 37 15 8.5
KAPSTLP251205 25 120 158 40 15 8.5
KAPSTLP251755 25 175 214 40 15 8.5
KAPSTLP281555 28 155 193 45 15 10.5
KAPSTLP190805 19 80 120 25 15 11.5
KAPSTLP220605 22 60 95 28 15 11.5
KAPSTLP250855 25 85 125 32 15 11.5
KAPSTLP280605 28 60 95 34 15 11.5
