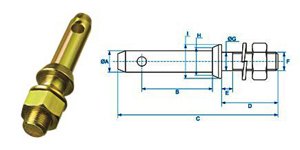

Lower Link Pin

Lower Link Pin
Perno Per Attacco Attrezzi
CODE A B C D E F G H I
KAPLLP2201M 22 50 130 40 5 20x1.5 20 32 38
KAPLLP2202M 22 50 140 40 14 22x1.5 22 20 38
KAPLLP2203M 22 50 140 40 14 22x1.5 28 30 38
KAPLLP2204U 22 51 149 54 11 7/8"UNF 22 30 36
KAPLLP2205U 22 51 140 48 6 3/4"UNF 19 30 36
KAPLLP2206U 22 51 140 43 11 5/8"UNF 22 30 36
KAPLLP2207U 22 51 146 38 22 7/8"UNF 28.6 30 36
KAPLLP2208U 22 51 146 50.8 9.5 7/8"UNC 28.6 32 38
KAPLLP2209U 22 51 146 50.8 9.5 1"UNF 25.4 30 36
KAPLLP2210U 22 51 138 38 14 7/8"UNF 28.6 30 36
KAPLLP2211M 22 51 128 38 10 20x1.5 20 30 36
KAPLLP2212M 22 51 128 38 10 20x1.5 20 30 36
KAPLLP2213M 22 60 150 40 20 22x1.5 22 32 38
KAPLLP2214M 22 60 150 40 20 22x1.5 28 32 38
KAPLLP2215M 22 60 146 40 20 22x1.5 25 32 32
KAPLLP2216U 22 51 140 45 10 7/8"UNF 22 30 34
KAPLLP2217U 22 64 165 56 16 7/8"UNF 22.2 32 38
KAPLLP2518M 25 60 150 40 20 22x1.5 25 34 40
KAPLLP2519M 25 60 150 40 20 22x1.5 28 32 38
KAPLLP2820M 28 50 155 30 50 30x2.0 30 48 50
KAPLLP2821M 28 55 150 45 14 22x1.5 24 36 42
KAPLLP2822M 28 55 150 45 15 24x1.5 24 37 43
KAPLLP2823M 28 55 150 45 14 27x1.5 28 38 43

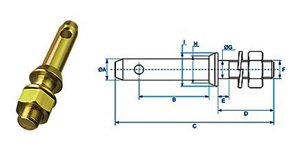

Lower Link Pin
Perno Per Attacco Attrezzi
CODE A B C D E F G H I
KAPLLP2824M 28 58 147 48 10 27x1.5 27 37 43
KAPLLP2825M 28 58 147 48 10 27x1.5 27 48 50
KAPLLP2826M 28 60 150 45 14 27x1.5 22 38 44
KAPLLP2827M 28 60 150 40 20 27x1.5 28 38 44
KAPLLP2828M 28 60 150 40 20 27x1.5 22 38 44
KAPLLP2829M 28 60 150 40 20 27x1.5 24 38 44
KAPLLP2830M 28 62 147 38 20 27x1.5 28 48 50
KAPLLP2831M 28 64 160 38 25 27x1.5 28 38 44
KAPLLP2832M 28 65 160 30 40 30x2 30 48 50
KAPLLP2833M 28 71 160 40 30 30x2 30 48 50
KAPLLP2834U 28.6 51 133.5 42 11 7/8"UNF 22 37 43
KAPLLP2835U 28 51 159 60 16 9/8"UNF 28.6 38 44
KAPLLP2836U 28.6 51 149 36.5 24 3/4"UNF 25.4 38 44
KAPLLP2837U 28.6 57 159 60 16 9/8"UNF 28.6 37 43
KAPLLP2838U 28.6 60 149 51 9.5 9/8"UNF 28.6 37 43
KAPLLP2839U 28.6 60 149 50.8 9.5 1"UNF 25.4 38 44
KAPLLP2840U 28.6 60 149 54 6.3 3/4"UNF 19 38 44
KAPLLP2841U 28.6 60 149 38 22 7/8"UNF 28.6 38 44
KAPLLP2842U 28.6 60 136.5 35 12.7 7/8"UNF 22 38 44
KAPLLP2843U 28.6 60 145 44 12.7 7/8"UNF 22 38 44
KAPLLP2844U 28.6 63.15 160 54 14 7/8"UNF 22.2 38 44
KAPLLP3645U 36 54 149 48 16 9/8"UNF 28.6 46 52
KAPLLP3646U 36.5 58 149 45 14 1.3/8"UNF 35 45 52
KAPLLP3647U 36.5 61 165 60 11 27x1.5 27 48 50
