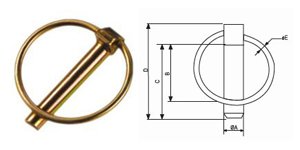

| LINCH PIN | |||||
| CODE | A | B | C | D | E |
| KAPLP4535 | 4.5 | 28.6 | 35 | 44 | 3 |
| KAPLP4540 | 4.5 | 33 | 40 | 48 | 3 |
| KAPLP6045 | 6 | 36.5 | 45 | 54 | 3.2 |
| KAPLP 6070 | 6 | 60 | 70 | 80 | 3.5 |
| KAPLP7045 | 7 | 36.5 | 45 | 55 | 3.3 |
| KAPLP8045 | 8 | 36.5 | 45 | 54 | 3.3 |
| KAPLP8070 | 8 | 60 | 70 | 80 | 3.5 |
| KAPLP9045 | 9 | 36.5 | 45 | 56 | 3.3 |
| KAPLP1045 | 10 | 36.5 | 45 | 56 | 3.5 |
| KAPLP1051 | 10 | 42 | 51 | 62 | 3.5 |
| KAPLP1145 | 10 | 36.5 | 45 | 56 | 3.5 |
| KAPLP1151 | 11 | 39 | 51 | 61 | 3.5 |
| KAPLP1245 | 12 | 36.5 | 45 | 56 | 3.5 |

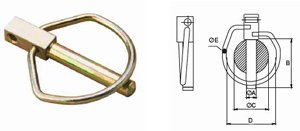

| LINCH PIN DIN 11023 | |||||
| CODE | A | B | C | D | E |
| KAPLPDIN4532 | 4.5 | 32 | 25 | 31.00 | 2.50 |
| KAPLPDIN 5542 | 5.5 | 42 | 32 | 44.80 | 3.60 |
| KAPLPDIN7542 | 7.5 | 42 | 32 | 44.80 | 3.60 |
| KAPLPDIN 9545 | 9.5 | 45 | 32 | 44.80 | 3.60 |
| KAPLPDIN1145 | 11 | 45 | 32 | 44.80 | 3.60 |
| KAPLPDIN1155 | 11 | 55 | 45 | 52.00 | 4.00 |
| KAPLPDIN1660 | 16 | 60 | 45 | 52.00 | 4.00 |

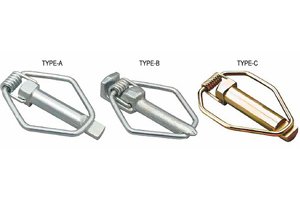

| SPRING LINCH PIN | ||
| CODE | DIA | TYPE |
| KAPSLP 85 | 8.5 | A |
| KAPSLP 105 | 10.5 | A |
| KAPSLP 11 | 11 | B |
| KAPSLP 155 | 15.5 | C |

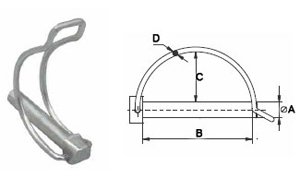

| PIPE LINCH PIN | ||||
| CODE | A | B | C | D |
| KAPPLP04540 | 4.5 | 40 | 18 | 3 |
| KAPPLP0632 | 6 | 32 | 18 | 3 |
| KAPPLP0640 | 8 | 40 | 18 | 3 |
| KAPPLP0645 | 8 | 45 | 22 | 3 |
| KAPPLP0840 | 8 | 40 | 18 | 3 |
| KAPPLP0845 | 8 | 45 | 22 | 3 |
| KAPPLP0850 | 8 | 50 | 25 | 3 |
| KAPPLP0860 | 8 | 60 | 28 | 3 |
| KAPPLP1040 | 10 | 40 | 25 | 3 |
| KAPPLP1050 | 10 | 50 | 25 | 3 |
| KAPPLP1060 | 10 | 60 | 28 | 3 |
| KAPPLP1070 | 10 | 70 | 28 | 3 |

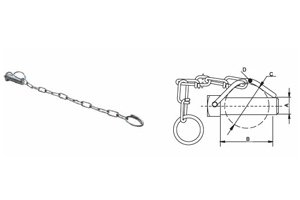

| SQUARE HEAD LINCH PIN WITH CHAIN FOR PIPE | ||||
| CODE | A | B | C | D |
| KAPPLP1248 | 12 | 48 | 44 | 4 |
| KAPPLP1448 | 14 | 48 | 44 | 4 |
| KAPPLP1650 | 16 | 50 | 44 | 4 |
| KAPPLP1960 | 19 | 60 | 48 | 4 |

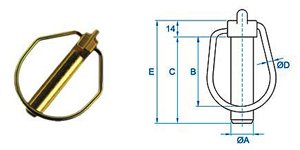

| Forged Linch Pins | |||||
| CODE | A | B | C | D | E |
| KAPLPF1148 | 11 | 48 | 52 | 4 | 66 |
| KAPLPF1556 | 15 | 56 | 60 | 4 | 74 |

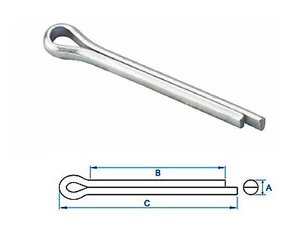

| Split Pins | |||
| CODE | A | B | C |
| KAPSP1620 | 1.6 | 20 | 28 |
| KAPSP1625 | 1.6 | 25 | 33 |
| KAPSP2020 | 2 | 20 | 28 |
| KAPSP2025 | 2 | 25 | 33 |
| KAPSP2028 | 2 | 28 | 35 |
| KAPSP2032 | 2 | 32 | 40 |
| KAPSP2040 | 2 | 40 | 50 |
| KAPSP2520 | 2.5 | 20 | 28 |
| KAPSP2540 | 2.5 | 40 | 50 |
| KAPSP3225 | 3.2 | 25 | 35 |
| KAPSP3240 | 3.2 | 40 | 50 |
| KAPSP4025 | 4 | 25 | 35 |
| KAPSP4032 | 4 | 32 | 45 |
| KAPSP4036 | 4 | 36 | 48 |
| KAPSP5050 | 5 | 50 | 63 |
| KAPSP5070 | 5 | 70 | 85 |
| KAPSP6350 | 6.3 | 50 | 64 |
| KAPSP6370 | 6.3 | 70 | 85 |
| KAPSP6380 | 6.3 | 80 | 98 |
| KAPSP8063 | 8 | 63 | 87 |
| KAPSP8080 | 8 | 80 | 104 |
| KAPSP80100 | 8 | 100 | 124 |
| KAPSP80125 | 8 | 125 | 150 |
| KAPSP1063 | 10 | 63 | 91 |
| KAPSP10125 | 10 | 125 | 153 |
| KAPSP13125 | 15 | 125 | 160 |
| KAPSP13140 | 13 | 140 | 175 |
