Double Implement/Mounting Pin

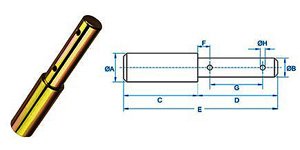

Implement Pin
Perno Universale
CODE A B C D E F G H
KAPDMP19156 19 16 74 82 156 16.5 55 5
KAPDMP22168 22 16 80 88 168 12 68 5
KAPDMP25166 25 19 85 81 166 18 53 5
KAPDMP25160 25 19 80 80 160 18 53 5
KAPDMP25180 25 19 90 90 180 18 57 5
KAPDMP28180 28 22 90 90 180 18 57 5
KAPDMP28175 28 22 90 85 175 16.5 50 6
KAPDMP28180 28 22 90 90 180 16.5 61 6
KAPDMP32178 32 25 83 95 178 18 62 6.5
KAPDMP32172 32 25 80 92 172 22 55 6.5

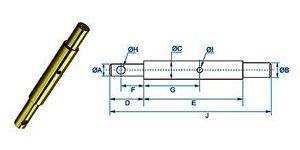

Inter Changeable Implement Mounting Pin
Perno Intercambiabile Per Attacco Attrezzi
CODE A B C D E F G H I J
KAPDMP20200 22 22 28 55 115 40 67 12 6.5 200
KAPDMP25200 25 22 28 55 115 40 67 12 6.5 200

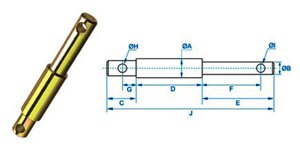

Double Implement Mounting Pin
Perno Doppio Intercambiabile Per Attacco Attrezzi
CODE A B C D E F G H I J
KAPDMP25210 25 19 40 70 100 80 20 12 12 210
KAPDMP25212 25 19 38 96 78 62 22 12 12 212
KAPDMP25170 25 19 26 66 78 70 18 6.5 6.5 170
KAPDMP28200 28 22 35 75 90 75 20 12 12 200
KAPDMP28210 28 22 40 70 100 80 20 12 12 210
KAPDMP28230 28 22 40 90 100 80 20 12 12 230
KAPDMP28229 28.6 22.2 40 89 100 80 20 12 12 229
KAPDMP32250 32 25 40 115 95 81 26 12 12 250
KAPDMP36277 36.5 28 36 150 91 81 26 12 12 277
KAPDMP36290 36.5 28 45 150 95 80 26 12 12 290

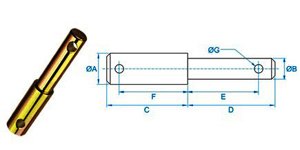

Weld On End Mounting Pin
Perno Doppio Da Saldarre Per Attacco Attrezzi
CODE A B C D E F G
KAPWOEMP0 28 22 62.5 84.5 70.5 47 12
KAPWOEMP1 28 22 76.5 104.5 88 60 12
KAPWOEMP2 28 22 85 105 85 62 12
KAPWOEMP3 28 22 103 78 60 87.3 12
KAPWOEMP4 28 22 120 56 39 92 12
KAPWOEMP5 28.6 22 76 105 87.3 60 12
KAPWOEMP6 34 28 61 80 62 43.5 12
